Browser-Callable Services for Accessing Java Backend

A browser-callable service is a server-side Java class whose public methods are exposed for calling from client-side TypeScript code.

A browser-callable service in Hilla is a class that defines one or more public methods, and is annotated with the @BrowserCallable annotation.

Hilla bridges browser-callable Java services and a TypeScript frontend. It generates TypeScript clients to call the Java backend in a type-checkable way. The TypeScript generator reference page contains details about the generator itself.

Important
Browser-callable services depend on Spring Boot auto-configuration.
Browser-callable services don’t work if auto-configuration is disabled, such as when you use @EnableWebMvc. As a workaround, remove the @EnableWebMvc annotation, as described in the Spring Boot documentation. If you have a suggestion as to how to make it more useful, please share your idea on GitHub.

Enabling Browser-Callable Services in a Vaadin Project

Browser-callable services are part of Vaadin, but a project needs the Hilla Spring Boot starter for them to be generated. Add the dependency to the project:

Source code
pom.xml
<dependency>
    <groupId>com.vaadin</groupId>
    <artifactId>hilla-spring-boot-starter</artifactId>
</dependency>

The version comes from the vaadin-bom dependency management that the project already has. No other build configuration is needed: the Vaadin Maven plugin generates the TypeScript clients into the src/main/frontend/generated directory as part of the build.

Creating a Browser-Callable Service

A browser-callable service is a Java class annotated with @BrowserCallable:

Source code
CounterService.java

When the application starts, Hilla scans the classpath for @BrowserCallable-annotated classes. For each request to access a public method in such a service, a permission check is carried out. @AnonymousAllowed means that Hilla permits anyone to call the method from the client side.

Refer to the Security article for details of configuring service access.

The Endpoint Alias

The @Endpoint annotation is an older alias for @BrowserCallable and works the same way. It’s still supported, but @BrowserCallable is preferred, since the name 'Endpoint' is easily confused with the so-called REST Endpoints.

Source code
Example Using @Endpoint Instead of @BrowserCallable:

The only difference is that @Endpoint supports a value attribute for changing the name under which the service is exposed. With @BrowserCallable, that name is always the same as the class name.

Extending Other Classes

Browser-callable services are standard Java classes and can extend other classes and implement interfaces. However, to prevent unintentional exposure, methods inherited from superclasses aren’t generated by default.

To expose methods from a superclass, use the @EndpointExposed annotation.

The following example demonstrates that only methods from the service itself and annotated superclasses are generated. The same principle applies to interfaces.

Source code
Java
@EndpointExposed
public class ExposedClass {
    public String fromExposedClass() { 1
        return "Hello from ExposedClass";
    }
}

public class NonExposedClass extends ExposedClass {
    public String fromNonExposedClass() { 2
        return "Hello from NonExposedClass";
    }
}

@BrowserCallable
public class ServiceClass extends NonExposedClass {
    public String fromServiceClass() { 3
        return "Hello from ServiceClass";
    }
}
  1. This method is generated in ServiceClass.

  2. This method is not generated, as its class is not annotated.

  3. This method is generated, as it’s in the service class.

Modules Generated from Browser-Callable Services

Hilla generates a TypeScript module for every browser-callable service on the backend. Each such module exports all of the methods in the service.

You can import an entire module from the barrel file, import all methods as a module from the service file, or select individual service methods. For example, the CounterService.ts could be used as in the following snippets:

Source code
index.ts (import the whole service module object from the barrel file)
import { CounterService } from 'Frontend/generated/endpoints';

CounterService.addOne(1).then((result) => console.log(result));
index.ts (import the whole service module object from the barrel file)
Note
The barrel file exports all of the services at once. Therefore, you can import multiple services using a single import.
Source code
index.ts (import all imports as a service object)
import * as CounterService from 'Frontend/generated/CounterService';

CounterService.addOne(1).then((result) => console.log(result));
index.ts (import all imports as a service object)
Source code
index.ts (import a single service method)
import { addOne } from 'Frontend/generated/CounterService';

addOne(1).then((result) => console.log(result));
index.ts (import a single service method)

Note
Frontend Directory Alias

The 'Frontend/' path prefix is an alias for the {project.basedir}/src/main/frontend directory in your project.

Hilla has this path alias in the default TypeScript compiler configuration (tsconfig.json); the Vite configuration file (vite.generated.js) respects the tsconfig aliases by default.

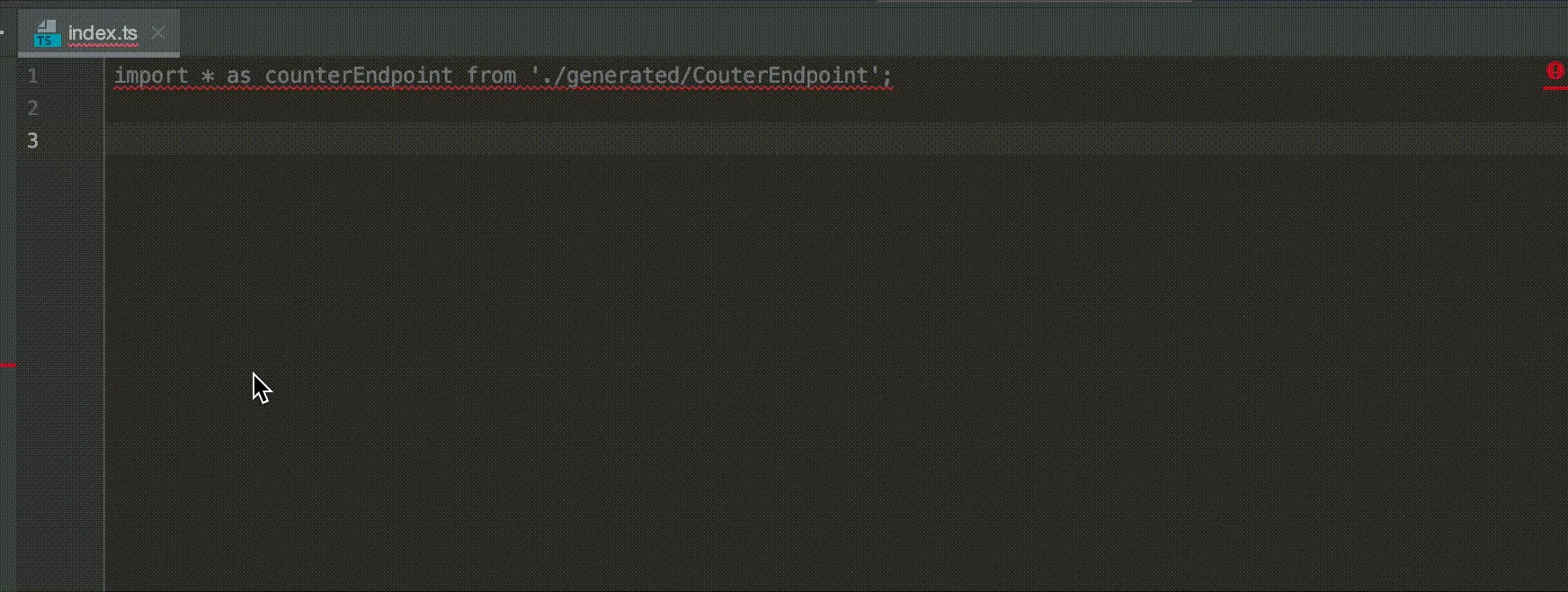

Using this path alias is recommended since it allows for absolute import paths, rather than traversing the directory hierarchy in relative imports.

Hilla generates the TypeScript modules automatically when you compile the application, as well as when the application is running in development mode.

By default, the generated files are located under {project.basedir}/src/main/frontend/generated. You can change the folder by providing the path for the generator in the generatedTsFolder property for the Hilla Maven plugin.

Hilla handles conversion between Java and TypeScript types. For more information about supported types, see Type conversion.

TypeScript Module Content Example

The generated TypeScript module for the browser-callable service defined in CounterService.java, for example, would look as follows:

Source code
CounterService.ts
import { EndpointRequestInit as EndpointRequestInit_1 } from "@vaadin/hilla-frontend";
import client_1 from "./connect-client.default.js";
async function addOne_1(number: number, init?: EndpointRequestInit_1): Promise<number> { return client_1.call("CounterService", "addOne", { number }, init); }
export { addOne_1 as addOne };
CounterService.ts

Objects

A service method can return or receive a parameter as an object (i.e., a non-primitive type). In this case, the generator also creates a TypeScript interface for the object.

An object can be defined in the following ways:

  • In a separate class that belongs to the project.

  • In a class that belongs to the project dependency.

  • In an inner class of a service or any other class.

Source code
City.java
package com.vaadin.demo.fusion.accessingbackend;

/**
 * An entity that contains an information about a city.
 */
public class City {
    private final String country;
    private final String name;

    public City(String name, String country) {
        this.country = country;
        this.name = name;
    }

    public String getName() {
        return name;
    }

    public String getCountry() {
        return country;
    }
}
City.java
Source code
CountryService.java
package com.vaadin.demo.fusion.accessingbackend;

import com.vaadin.flow.server.auth.AnonymousAllowed;
import com.vaadin.hilla.BrowserCallable;

import java.util.Arrays;
import java.util.List;

/**
 * A browser-callable service that shows principles of work with entities.
 */
@BrowserCallable
@AnonymousAllowed
public class CountryService {
    private final List<City> cities = Arrays.asList(
            new City("Turku", "Finland"), new City("Berlin", "Germany"),
            new City("London", "UK"), new City("New York", "USA"));

    /**
     * A method that returns a collection of entities.
     */
    public List<City> getCities(Query query) {
        return query.getNumberOfCities() <= cities.size()
                ? cities.subList(0, query.getNumberOfCities() - 1)
                : cities;
    }

    /**
     * An entity specified as an inner class.
     */
    public static class Query {
        private final int numberOfCities;

        public Query(final int numberOfCities) {
            this.numberOfCities = numberOfCities;
        }

        public int getNumberOfCities() {
            return numberOfCities;
        }
    }
}
CountryService.java

The TypeScript output is the following:

Source code
City.ts
interface City {
    name?: string;
    country?: string;
}
export default City;
City.ts
Source code
Query.ts
interface Query {
    numberOfCities: number;
}
export default Query;
Query.ts
Source code
CountryService.ts
import { EndpointRequestInit as EndpointRequestInit_1 } from "@vaadin/hilla-frontend";
import type City_1 from "./com/vaadin/demo/fusion/accessingbackend/City.js";
import type Query_1 from "./com/vaadin/demo/fusion/accessingbackend/CountryService/Query.js";
import client_1 from "./connect-client.default.js";
async function getCities_1(query: Query_1 | undefined, init?: EndpointRequestInit_1): Promise<Array<City_1 | undefined> | undefined> { return client_1.call("CountryService", "getCities", { query }, init); }
export { getCities_1 as getCities };
CountryService.ts

Nullable & Non-Nullable Types

See Type nullability for more information about how the nullability algorithm works and how to make types non-nullable.

Service URLs

Hilla automatically generates the URLs and wraps them in the generated TypeScript API so the developer doesn’t have to worry about them.

Even though you can access any public method in any browser-callable service with the https://${base_url}/${prefix}/${service_name}/${method_name} URL format, don’t use those URLs directly. Instead use the TypeScript methods.

  1. The ${base_url} is the base URL of the application, depending on the framework used. For instance, for the Spring framework the default URL, if the application is started locally, is http://localhost:8080. If the application is started with a context, it should be added to the end: such as, http://localhost:8080/my-app.

  2. The ${prefix} is the URL common part that every exposed service contains. By default, connect is used, but this can be configured in the application properties.

  3. The ${service_name} is by default the corresponding Java class name which exposes methods, although this can be changed with the @Endpoint annotation value.

  4. The ${method_name} is the public method name from the Java class.

For an application started locally with the CounterService service defined as shown, the URL is: http://localhost:8080/connect/counterservice/addone

Source code
Java
@BrowserCallable
public class CounterService {

    public int addOne(int number) {
        return number + 1;
    }
}
Note
Service URLs Aren’t Case-Sensitive
The service name and the method name aren’t case-sensitive in Hilla. Therefore, the URL shown is the same as http://localhost:8080/connect/CounterService/addOne or http://localhost:8080/connect/COUNTERSERVICE/ADDONE, or any other case combination for the service and method name.

Configuring Service URLs

You can configure the following parts of the URL:

${prefix}

The default value is connect. To change it to some other value, provide an application.properties file in the project resources (src/main/resources/application.properties) and set the vaadin.endpoint.prefix property to the new value.

${service_name}

By default, the simple name of the Java class is taken. It’s possible to specify a value in the @Endpoint annotation to override the default one (@Endpoint("customName")). In this case, the customName value is used as a ${service_name} to accept incoming requests. It’s also case-insensitive.

Service Method Validation

The parameters of a service method are automatically validated and, if validation fails, a corresponding response is sent back to the browser.

Whenever a service method is invoked, its parameters are automatically validated using the JSR 380 Bean validation specification after they’re deserialized from the request body.

This is useful in eliminating the boilerplate needed for the initial request validation. The framework automatically checks the constraints placed on beans and sends the response back to the client side if the validation fails. The browser raises an EndpointValidationError when it receives the corresponding response from the server.

Built-In Validation Constraints

The built-in validation constraints are the set of annotations provided by the jakarta.validation.validation-api dependency. They’re intended to be placed on Java beans on the server side.

You can find a full list of the constraints at https://beanvalidation.org/2.0/spec/#builtinconstraints

To use these annotations, add them to the class field or method parameter. For example:

Source code
Java
public class Account {

  @Positive
  private Long id;

  @NotEmpty(message = "Each account must have a non-empty username")
  private String username;

  private void sendAccountData(@NotNull String destination) {
    // ...
  }
}

Custom Validation Constraints

It’s possible to create custom constraints. To do this, you need to create a custom annotation and a custom validator.

See the official documentation for more details.

Manual Validation

Since all of the dependencies needed for validating beans and methods are present, you can reuse them in any part of your project — not only in the service methods. For example:

Source code
Java
// A validator for validating beans
Validator validator = Validation.buildDefaultValidatorFactory().getValidator();
// non-empty set if there are any constraint validation errors
Set<ConstraintViolation<Object>> violations = validator.validate(bean);

// A validator for validating methods and constructors (return values, parameters)
ExecutableValidator executableValidator = validator.forExecutables();
// non-empty set if there are any constraint validation errors
Set<ConstraintViolation<Object>> violations = executableValidator.validateReturnValue(object, method, returnValue);

If required, you can throw an EndpointValidationException from a service method. This exception is caught by TypeScript and the corresponding EndpointValidationError is raised.

See the official documentation for more details on validating bean constraints and validating method constraints.

Hilla Validation Implementation Details

Hilla validates only the beans and method parameters that are used in the browser-callable service classes (i.e., classes with the @BrowserCallable annotation). No other types are validated, even if they have constraint annotations.

If any validation errors occur, a non-200 response is sent back, which is interpreted in TypeScript as a reason to throw an EndpointValidationError. A similar effect is achieved if an EndpointValidationException is thrown by any of the Java service methods.

Error Handling

A robust client implementation should be able to handle invalid service calls, errors on the server side, and network outages.

Hilla determines the success of a service call by inspecting the HTTP status code. The server returns the 200 OK code when it’s able successfully to process the request, deserialize the method body, find and execute the particular method in the service, and serialize its return value into a response.

If the status code of the response isn’t 200 OK, Hilla throws an error on the client side. The available parameters in the error and the specific class of the thrown error depend on the failure mode. The most common ones are described in the next sub-sections.

Missing Service

If the request addresses a service or a method name not present on the backend, the server responds with 404 Not Found and Hilla raises an error of type EndpointError.

Parameter Validation Error

If the method called in the request exists on the backend, but the parameter count and types don’t match the service method, the server responds with 400 Bad Request and Hilla raises an error of type EndpointValidationException. The error instance contains a field validationErrorData holding validation error information for each invalid parameter. See Type conversion between JavaScript and Java for more details about the type conversion rules.

For example, the following service expects a java.time.LocalDate parameter:

Source code
DateService.java
package com.vaadin.demo.fusion.errorhandling;

import com.vaadin.flow.server.auth.AnonymousAllowed;
import com.vaadin.hilla.BrowserCallable;

import java.time.LocalDate;

@BrowserCallable
public class DateService {

    @AnonymousAllowed
    public LocalDate getTomorrow(LocalDate date) {
        return date.plusDays(1);
    }
}
DateService.java

A call with an illegal data parameter raises an EndpointValidationException with information about which parameters failed validation:

Source code
catch-invalid-args.ts
import { EndpointValidationError } from '@vaadin/hilla-frontend';
import { DateService } from 'Frontend/generated/endpoints';

export async function callService() {
  try {
    // pass an illegal date
    const tomorrow = await DateService.getTomorrow('2021-02-29');
    console.log(tomorrow);
    // handle result...
  } catch (error) {
    if (error instanceof EndpointValidationError) {
      error.validationErrorData.forEach(({ parameterName, message }) => {
        console.warn(parameterName); // "date"
        console.warn(message); // "Unable to deserialize an endpoint method parameter into type 'java.time.LocalDate'"
      });
    } else {
      // handle other error types...
    }
  }
}
catch-invalid-args.ts

Note that when using server-side form validation, validation exceptions from the server are handled automatically by the form binder.

Server-Side Errors

If the service exists and its parameters could be passed, but its execution raises a Java runtime exception, the server responds with 500 Internal Server Error. When this happens, Hilla raises an error of type EndpointError. As a special case, if the server-side exception is an instance of dev.hilla.exception.EndpointException or a subclass, the server instead responds with 400 Bad Request. Then the exception type and message passed to the EndpointException in Java are available in the EndpointError instance via the type and message attributes.

The following service implementation is an example of this:

Source code
DataService.java
package com.vaadin.demo.pwa.offline;

import com.vaadin.hilla.BrowserCallable;
import com.vaadin.hilla.exception.EndpointException;

@BrowserCallable
public class DataService {

    public String getViewData() {
        throw new EndpointException("Not implemented");
    }
}
DataService.java

The following client-side call to the service method logs the error message and exception type:

Source code
catch-error.ts
import { EndpointError } from '@vaadin/hilla-frontend';
import { DataService } from 'Frontend/generated/endpoints';

export async function callService() {
  try {
    await DataService.getViewData();
  } catch (error) {
    if (error instanceof EndpointError) {
      console.warn(error.message); // "Not implemented"
      console.warn(error.type); // "com.vaadin.hilla.exception.EndpointException"
    }
  }
}
catch-error.ts

Network Errors

When the server isn’t reachable due to outage or network disruption, a service call results in a low-level network error, different from EndpointError. Applications that support offline mode can wrap service calls with exception-handling code returning a fallback value, by distinguishing between the error classes as follows:

Source code
ts-view-with-service.ts
import { EndpointError } from '@vaadin/hilla-frontend';
// Import the remote service
import { DataService } from 'Frontend/generated/endpoints';

// Wrap service calls to return fallback data when offline
export async function getViewData() {
  try {
    return await DataService.getViewData();
  } catch (e) {
    if (!(e instanceof EndpointError)) {
      // Network failure: return fallback data
      return [];
    }

    // Service reached but returned abnormal status code:
    // pass exception on to caller
    throw e;
  }
}
ts-view-with-service.ts

See the documentation about caching service data in local storage using a generic wrapper.

Unexpected Response Contents

If the server replies with a response other than 200 OK, and the string contained in the response isn’t valid JSON, an EndpointResponseError is raised. The exception contains the response text as a message and the Response object in the response field.

Request Options

All regular Hilla requests support some options as the last parameter. They’re listed in the sections here.

Abort Signal

You can pass an AbortSignal object to the call to cancel a request. This is useful when you want to cancel a request, perhaps because you’ve decide you don’t need it after all or because it’s taking too long.

Source code
request-options.ts

Suppress Connection State

By default, when a request takes too long, Hilla shows a progress bar to the user at the top of the page. You can suppress this by setting the mute option to true.

Source code
request-options.ts

Code Completion in IDEs

As you can see in the earlier CounterService.ts example, the Javadoc for the @BrowserCallable class is copied to the generated TypeScript file, and the type definitions are maintained. This helps code completion to work — at least in Visual Studio Code and IntelliJ IDEA Ultimate Edition.

Code-completion
Code Completion in Visual Studio Code

Updated
